Transaction Structure

This article covers the flattened structure of the transaction model and serialized transactions.

When building or executing a transaction, it is better to think in terms of its tree-based Intent Structure. We advise you to read about the intent structure first before reading this article.

V1 User Transaction Structure

It is much the same as the V2 structure, except has no support for subintents, in particular:

• V1 transactions have a single intent. This was split into the transaction intent and intent core concepts in V2.
• V1 transactions have a single header. This was split into the single Transaction Header and per-intent Intent Header in V2.

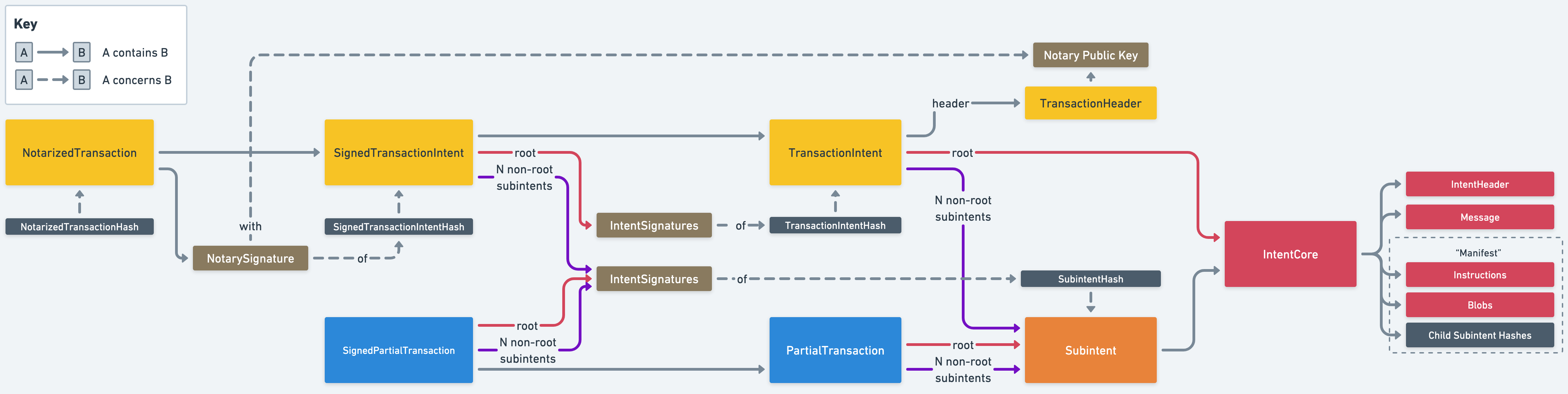

V2 User Transaction Structure

In the persisted structure, the subintents are flattened into an array. During validation, they are converted into a tree structure. When building transactions, you will build them up in this tree-based intent structure.

Transaction hashes discussed below are built up in merklized layers, such that a transaction hash can be used to prove details about the content of a transaction without providing the full transaction.

Notarized Transaction

The notarized transaction is the fully signed transaction, and is represented by its NotarizedTransactionHash (notarizedtransaction_...).

It contains:

• The signed transaction intent
• The notary's signature of the signed intent hash. Note that the notary may or may not count as a signatory of the transaction, depending on the notary_is_signatory flag in the transaction header.

Signed Transaction Intent

The signed transaction intent is represented by its SignedTransactionIntentHash (signedintent_...).

It contains:

• The transaction intent
• The signatures of the root transaction intent (of its transaction intent hash)
• A flattened array of signatures for each included subintent (of its subintent hash)

Transaction Intent

The transaction intent is represented by its TransactionIntentHash, shown to users as the transaction id (txid_...). The Radix Engine guarantees each transaction intent can be committed at most once (as either a success or failure).

It contains:

• The transaction header, capturing:
  • The notary_public_key which must notarize the transaction
  • A flag notary_is_signatory which determines if the notary counts as a signatory of the root transaction intent core
  • The tip_basis_points
• The root transaction intent core
• A flattened array of subintents, each containing just their intent core.

Subintent

Each subintent is encapsulated by its SubintentHash (subtxid_...), sometimes shown to users as its preauthorization id.

The Radix Engine guarantees each subintent can be successfully committed at most once. It can be committed in a failing transaction zero or more times before that, but is unable to pay fees.

Each subintent only contains its intent core.

Intent Core

An intent core is common to both the transaction intent and each subintent. A transaction can therefore contain one or more intent cores.

Each intent core contains:

• An intent header, capturing:
  • The network_id which must match the network
  • The min_epoch_inclusive and max_epoch_exclusive in which the intent can be committed
  • An optional min_proposer_timestamp_inclusive and optional max_proposer_timestamp_exclusive between which the intent can be committed
  • An intent_discriminator, typically set to a random number - which allows generating a new transaction id for what could otherwise be the same intent.
• An optional message
• The intent's manifest
  • One or more blobs (uninterpreted byte payloads which can be passed to smart contracts in the manifest)
  • An array of the subintent hashes of each child
  • A list of instructions, which can be represented in a human readable form

V2 Partial Transaction Structure

When constructing transactions containing more than one intent, it's typical to build them up in subtrees, according to their intent structure.

In particular, there are two additional useful models:

Signed Partial Transaction

A signed partial transaction is an equivalent of a signed transaction intent, but with a subintent root.

It contains:

• The root partial transaction
• The signatures of the root subintent (of its subintent hash)
• A flattened array of signatures for each included non-root subintent (of its subintent hash)

Partial Transaction

A partial transaction is an equivalent of a transaction intent, but with a subintent root.

It contains:

• The root subintent
• A flattened array of non-root subintents
