Create Owned Components

  • Dark
    Light
  • PDF

Article summary

In the last section we looked at a candy store package made up of several blueprints. This section will show how to do the same thing in a different way. We will still have a candy store component containing a gumball machine component. The difference this time, will be the gumball machine will be owned by the candy store.

There are two broad ways to modularise your components, each with distinct advantages.

  1. Global components: Like all the components from the previous sections, these are created at the global level and are accessible to all other components on the ledger.
  2. Owned components: Internal to other components, they are only accessible to their parent components.
The scrypto package referenced in this section can be found in our official examples here.

Contents

Global and Owned Components

All components are initially local. In this state they are not addressable by or accessible to others. To change this we globalize them. This is done after instantiation by first calling prepare_to_globalize (setting the component access rules and reserving an address) on the new component, then calling the globalize method like so:

    .instantiate()
    .prepare_to_globalize(OwnerRole::None)
    .globalize();

Without these steps, to use a component it must be internal to another. This is done by adding the component in a parent component's struct, with the wrapping Owned type, e.g.

    struct CandyStore {
        gumball_machine: Owned<GumballMachine>,
    }

The owned component's methods, can then be called by it's parent, but no other components. e.g.

    self.gumball_machine.buy_gumball(payment);

Let's compare how this looks in our example packages.

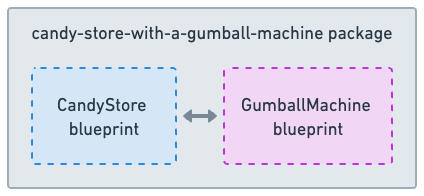

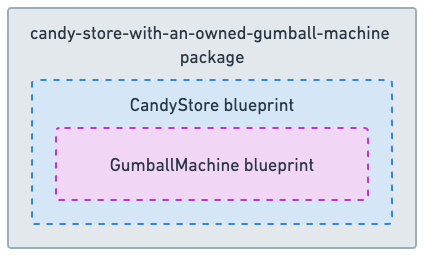

Package with Owned GumballMachinePackage with Global GumballMachine



Owned vs Global GumballMachine

The global GumballMachine is the same as from previous examples. The owned version is where we see several changes.

Restricted methods

OwnedGlobal
  • No method restrictions. This is now handled by the parent component.
enable_method_auth! {
    methods {
        buy_gumball => PUBLIC;
        get_status => PUBLIC;
        set_price => restrict_to: [OWNER];
        withdraw_earnings => restrict_to: [OWNER];
        refill_gumball_machine => restrict_to: [OWNER];
}}

Instantiation function start

OwnedGlobal
  • The parent component address is passed in.
  • Only the new component is returned as there's no owner badge.
pub fn instantiate_gumball_machine(
   price: Decimal,
   parent_component_address:
    ComponentAddress,
) -> Owned<GumballMachine> {
  • A component address reserved.
  • Both the component and owner badge are returned.
pub fn instantiate_gumball_machine(
  price: Decimal
) ->
   (Global<GumballMachine>, Bucket) {
      // reserve an address for the component
      let (
        address_reservation,
        component_address,
      ) =
         Runtime::allocate_component_address(
            GumballMachine::blueprint_id()
         );

Owner badge

OwnedGlobal
  • No owner badge. The parent component is the owner.
let owner_badge = ...

Gumball mint roles

OwnedGlobal
    .mint_roles(mint_roles! {
        minter => rule!(
              require(
                  global_caller(
                      parent_component_address
            )));
        minter_updater => rule!(deny_all);
    })
    .mint_roles(mint_roles! {
        minter => rule!(require(
            global_caller(
                component_address
            )));
        minter_updater => rule!(deny_all);
    })

Instantiation function end

OwnedGlobal
    .instantiate()
    .instantiate()
    .prepare_to_globalize(OwnerRole::Fixed(rule!(require(
        owner_badge.resource_address()
     ))))
    .with_address(address_reservation)
    .globalize();

The owned version is simpler, as we're able to remove much of the access and control code, but it comes with a downside. The radix engine has to do more under the hood to manage an owned component. This means that the owned version is more expensive to run, with higher transaction fees.

Owner vs Non-owner CandyStore

The CandyStore is globalized in both (this and the previous sections) version of our package. The code for its blueprint is simpler here, where it owns the GumballMachine. In this version there's no need for a GumballMachine owner badge stored in this component. The only methods accessible on either blueprint are those of the CandyStore, so we restricted access to necessary methods on the CandyStore and we don't need add restrictions to the GumballMachine. No method restrictions in the GumballMachine means no needs to hold the GumballMachine owner badge to pass proof of ownership to the GumballMachine to call it's restricted methods. This is done with the authorize_with_amount method for the previous global GumballMachine, which we don't have to use at all in this version.

Component state

Owner (owned GumballMachine)Non-owner (global GumballMachine)
struct CandyStore {
    gumball_machine: Owned<GumballMachine>,
}
struct CandyStore {
    gumball_machine: Global<GumballMachine>,
    gumball_machine_owner_badges: Vault,
}

Address reservation

Owner (owned GumballMachine)Non-owner (global GumballMachine)
let (address_reservation, component_address) =
    Runtime::allocate_component_address(
        CandyStore::blueprint_id()
    );
  • None. The GumballMachine address and owner badge are used to restrict access to component methods and token behaviours.

Gumball machine instantiation

Owner (owned GumballMachine)Non-owner (global GumballMachine)
let gumball_machine =
    GumballMachine::
      instantiate_gumball_machine(
        gumball_price,
        component_address,
     );
let (
       gumball_machine,
       gumball_machine_owner_badge,
     ) =
    GumballMachine::instantiate_gumball_machine(
        gumball_price
    );

Globalizing

Owner (owned GumballMachine)Non-owner (global GumballMachine)
  .prepare_to_globalize(
    OwnerRole::Fixed(rule!(require(
      owner_badge.resource_address()
   ))))
  .with_address(address_reservation)
  .globalize();
    .instantiate()
    .prepare_to_globalize(
      OwnerRole::Fixed(rule!(require(
        owner_badge.resource_address()
     ))))
    .globalize();

Calling restricted GumballMachine methods

Owner (owned GumballMachine)Non-owner (global GumballMachine)
pub fn set_gumball_price(
  &mut self, new_price: Decimal
) {
  self.gumball_machine.set_price(
    new_price
  );
}
  • To call a method on the GumballMachine we need to pass a proof that we have it's owner badge.
pub fn set_gumball_price(
      &mut self, new_price: Decimal
) {
  self.gumball_machine_owner_badges
    .as_fungible()
    .authorize_with_amount(
      1,
      || self.gumball_machine.set_price(
        new_price
    ));
}

Owned components make for simpler code that is easier to read and maintain. But you will have to decide if the extra transaction cost is worth it for your applications.

Using the Candy Store

Instructions on how to setup and use the multi-blueprint yourself can be found in the Official Example GitHub repository
