Account

Unlike most blockchain platforms, an account on Radix are not simply associated with your public and private key. Instead, an account is a component, instantiated from a built-in account blueprint provided by the system which exist in the application layer. Even though accounts are implemented in the application layer, account components are unique in that they’re afforded some unique features that are not afforded to other normal components. As a result, accounts on Radix can contain resources and have special logic built into it.

Naturally, an account has an owner which controls the account, and the owner of the account is able to:

• Lock a fee from the XRD vault that the account may hold to pay for transaction fees.

• Manage the account by withdrawing and depositing resources.

• Create proofs against resources that the account stores.

• Configure which deposits the account accepts and rejects.

Furthermore, account components have a security model which employs a Role Based Access Control (RBAC) model where there are pre-configured roles which are mapped to privileged methods that only these roles have access to. These are roles to delineate who is allowed to do what with the account.

The account blueprint has two pre-configured roles by default: Owner and Securify.

• The Owner role is given the ability to call all the privileged methods on the account (such as methods that withdraw and deposit resources or lock XRD for fee payment).

• The Securify role is the role that can call the appropriate methods that "securifies" the account. This allows to expand the accounts authorization model and enables things like multi-factor control. More information on account securificaton is provided in the Account Securification section.

While the Owner can expand who is allowed to access their account by re-configuring the roles, by default at instantiation, both roles are associated to the owner.

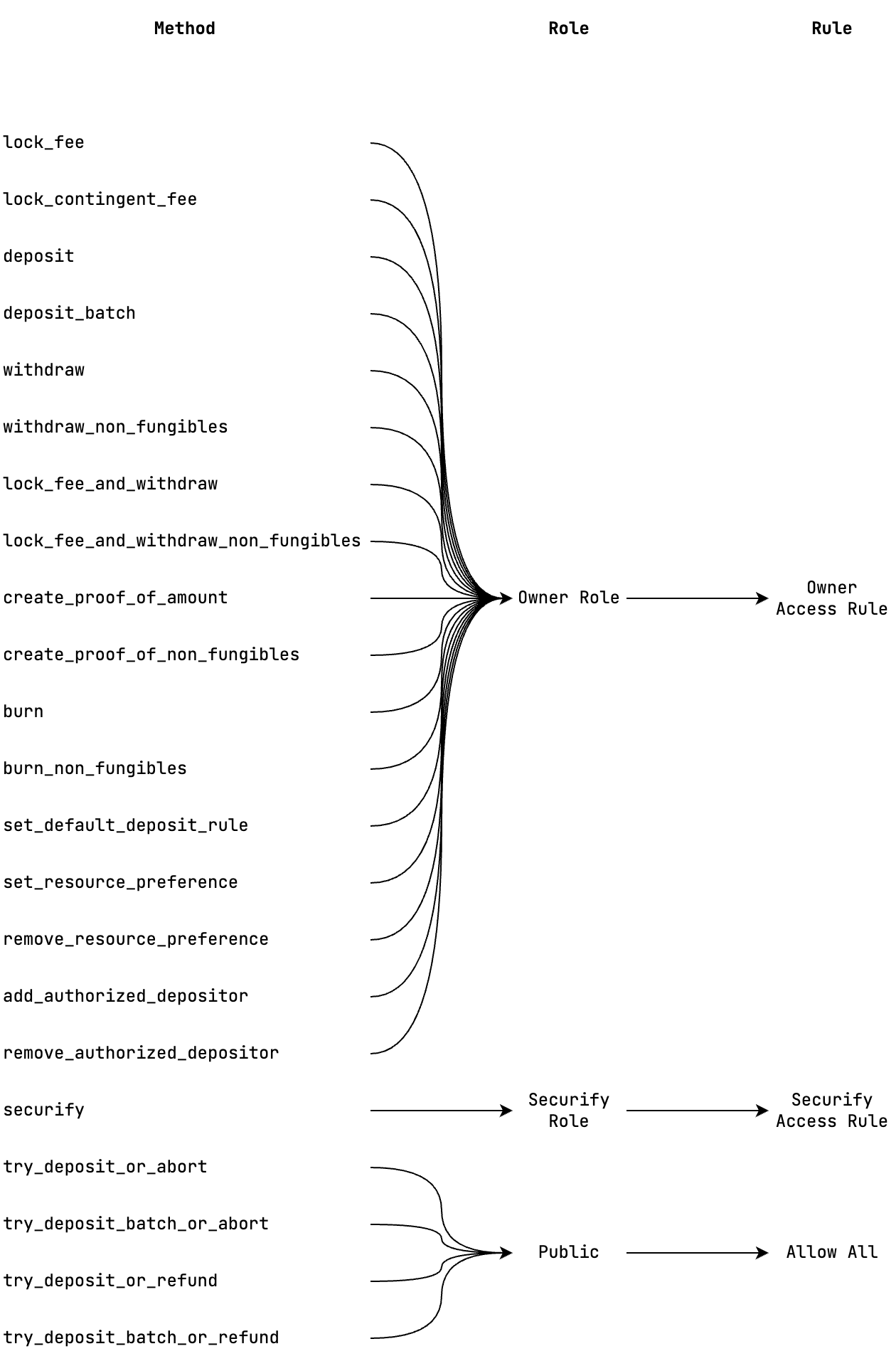

The diagram below shows a complete list of the account methods and the roles that they map to, in other terms, it shows the roles that are authorized to call these methods. It also shows the mapping of the roles to the access rules. All the methods seen in the diagram below are explained in detail in the API Reference section of the document.

How the Account Component Works

Use of Radix accounts is done through calls to component methods using the transaction manifest (as with any component).

For example, a simple transfer of 10 XRD tokens from Alice’s account to Bob’s is accomplished by creating a transaction manifest that describes these steps:

• Lock fees to pay for the transaction

• Call the withdraw method on Alice’s account component, requesting 10 XRD

• Take the returned tokens from the worktop and put them in a bucket

• Pass this bucket to the try_deposit_or_x method of Bob’s account component

As long as Alice’s account does in fact have 10 XRD to withdraw (and is authorized to withdraw from that component - more on this below), the 10 XRD are returned and deposited in Bob’s account (as long as Bob’s account is not configured to deny XRD). If any of these assumptions are incorrect, the whole transaction fails.

In this way, using a Radix-style account is intuitively like getting cash from your wallet when you want to pay for something.

Account Addresses and Pre-allocation

There are two main types of account address:

• Addresses for pre-allocated accounts, which are implicitly instantiated via on-ledger interactions. These addresses encode either a Secp256k1 or Ed25519 public key hash, and at instantiation time, the initial Owner role is assigned to require a signature of the corresponding public key.

• Addresses for explicitly-allocated accounts.

The difference between these addresses is what happens if no account has been instantiated at that address yet. A pre-allocated account effectively already exists in a “virtual” state before it is instantiated, and the Core API and Gateway API return data for an un-instantiated pre-allocated account address in this “virtual” state, as if it already existed. The first time it is interacted with on ledger (say, because it receives a deposit), the account shell gets instantiated automatically. The transaction which interacts with that account for the first time pays additional fees to instantiate the account.

The following is the algorithm used to derive the pre-allocated account address associated with a public key. This method is also made available by the Radix Engine Toolkit:

• Take an Ecdsa compressed Secp256k1 public key, or the standard Ed25519 public key.

• Hash the public key through Blake2b with 256 bit digests.

• Construct a 30 byte array by setting the first byte to 0xD1 for a Secp256k1 public key or 0x51 for an Ed25519 public key, and then appending the last 29 bytes of the public key hash.

• Bech32m encode the above with the account_${network_specifier} HRP where the network_specifier depends on the network that the address will be used for (see addressing).

Account Metadata and Owner Keys

More to come here once we have implemented messages and owner keys for accounts.

Configuring Account Deposit Modes and Resource Preference Map

There are two types of deposits for two different sets of callers:

• Privileged methods such as deposit and deposit_batch which accepts all deposits and can only be called by the account owner.

• Unprivileged methods such as try_deposit_or_abort, try_deposit_or_refund, try_deposit_batch_or_abort, and try_deposit_batch_or_refund that are reserved for third-parties who wish to deposit resources to an account.

Because privileged deposit* methods can only be called by the account owner, third-parties who wish to deposit resources to an account are required to use try_deposit* methods. The try_deposit* methods are reserved to allow account owners to configure how resources deposited to their account by third-parties are treated. As such, there are two settings that the owner of an account component can set up to configure how resources deposited are treated: the Resource Preference Map and the Account Deposit Mode.

• The Resource Preference Map is a granular per resource configuration that account owners can specify.

• The Account Deposit Mode is a fall-back configuration which determines how resources deposited into an account are broadly treated.

The resource preference map is the primary and first place that the account looks at when determining if a resource can be deposited or not and always supersedes configurations within the account deposit mode or any other account state.

Resource Preference Map

The account component contains a "resource preference" map in its state. This map stores the preference configuration of each specific resource and can be thought of as the “allow list” and “deny list”. Technically speaking, the resource preference map is defined in code as KeyValueStore<ResourceAddress, ResourcePreference> where each address of a resource (indicated by their ResourceAddress) is mapped to a ResourcePreference which is an enum variant of Allowed and Disallowed.

In summary:

• If the ResourcePreference for some resource is Allowed then it is guaranteed to be deposited into the account, if the ResourcePreference for some resource is Disallowed then its guaranteed to be rejected by the account component, no other state matters.

• A resource cannot be in the “allow list” and “deny list” at the same time since a KeyValueStore does not allow for duplicate entries with the same key, thus, a resource can only be: Allowed, Disallowed, or has no entry in the resource preferences map.

The resource preference map of an account component can be configured through the set_resource_preference and remove_resource_preference methods by the owner. It’s important to note that resources are not special-cased to this resource preference mapping. Any resource can be put as a Allowed resource and any resource can be put as a Disallowed resource. This means even XRD can be Disallowed from being deposited into an account through unprivileged deposit methods.

Account Deposit Mode

When an account doesn’t have a specific resource configured in the resource preference map, the account component then uses a broader mechanism: account deposit mode. The account deposit mode is a default treatment of resource deposits that are not specified in the resource preference map. An account deposit mode can be configured in the following ways:

• Accept: If the account doesn’t have a preference for a particular resource then permit the deposit of the resource.

• Reject: If the account doesn’t have a preference for a particular resource then reject the deposit of the resource.

• Allow Existing (or XRD): If the account doesn’t have a preference for a particular resource then permit the deposit of the resource IF the account has ever held the resource before or the resource is XRD.

  • Any resource that the account has a vault for can be deposited into the account while in this mode even if the vault in the account is empty for that particular resource.

  • If the user wishes to make exceptions to this (to e.g. prevent XRD deposits, or deposits of a previously-held resource), they can configure these explicitly using the resource preference map.

The default deposit mode of an account can be configured through the set_default_deposit_rule method by the owner.

In summary:

• If a resource isn’t configured in the resource preference map then the account’s default deposit mode comes into the picture which can either be Accept, Reject, or AllowExisting.

Authorized Depositors

With these account deposit configuration in mind, another feature to note is that the owner of an account can also specify authorized depositors. When owners specify authorized depositors to their account, the authorized depositors have special privileges which allows resource deposits into the account regardless of the account resource preferences and deposit mode setting. This effectively gives authorized depositors the same deposit privileges as the owner. Except of course the privileges starts and stops there and the owner can always revoke those privileges.

A small caveat is that, authorized depositors will still need to use try_deposit* methods even with their deposit privileges as the protected deposit* methods are only reserved for the owner.

When the owner wants to add an authorized depositor, they may do so by calling the add_authorized_depositor method. When calling this method, the owner can specify the ResourceOrNonFungible of an existing badge that the prospective authorized depositor may have or create one for the prospective authorized depositor to receive. The ResourceOrNonFungible is an input which accepts either a ResourceAddress if the badge used is a fungible resource or a NonFungibleGlobalId if the badge used is a non-fungible resource. Once specified, the badge will not be added to the account’s list of authorized depositor and the authorized depositor must have the badge present when making privileged deposits to the account.

For example, if the authorized depositor deposits a resource that have been specified as Disallowed in the resource preference map or that the account deposit mode is set to Reject, the account does the following:

1. Check if the badge passed is in the account’s set of authorized depositors.

2. Assert the presence of this badge in the auth zone.

3. Permit the deposit.

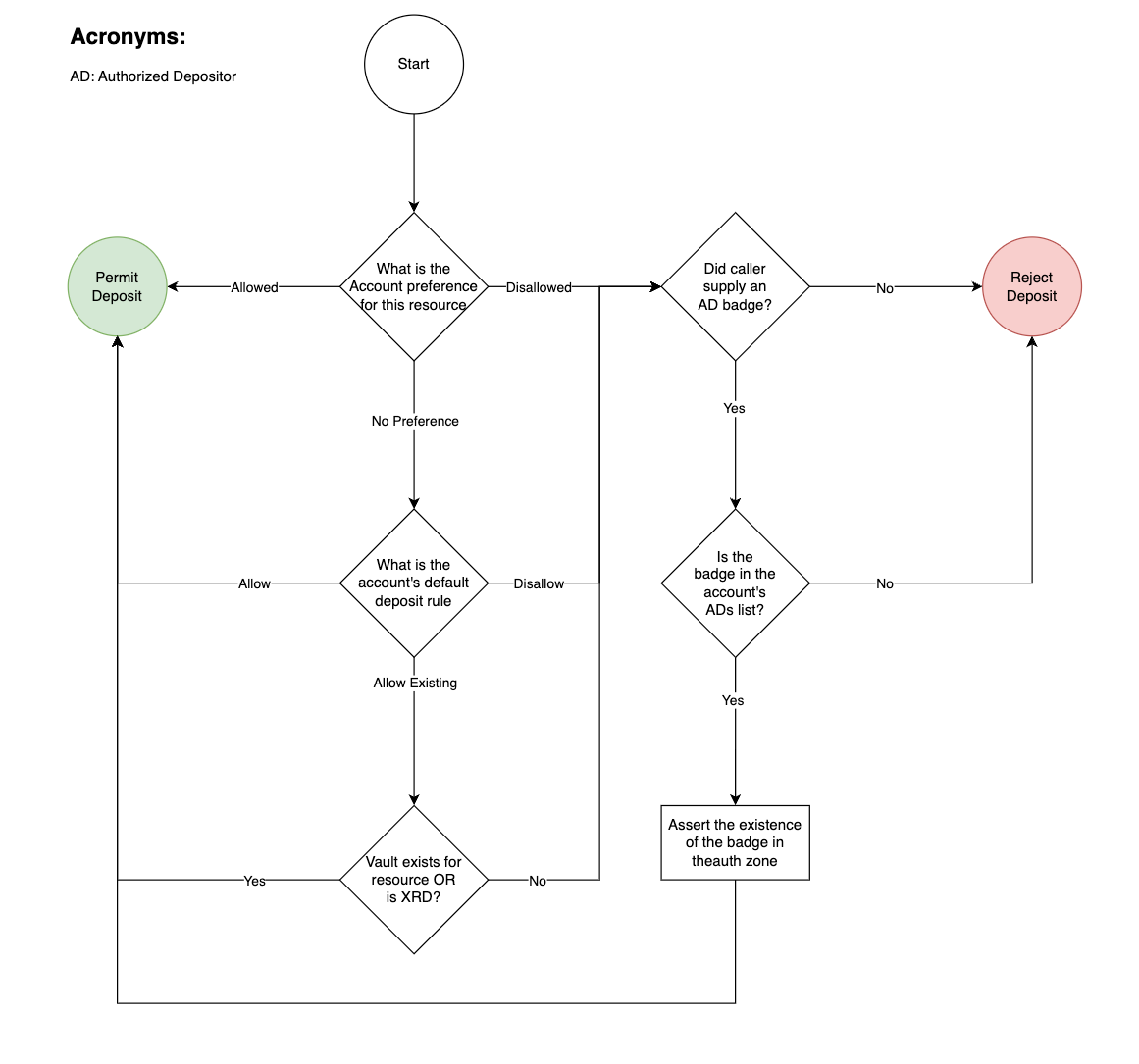

The following is a complete flow chart showing the logic to determine if a deposit is allowed or not.

Account Securification

Owners of an account component are defined by the Owner role which is mapped to an access rule. By default, the access rule is configured to its key pairs derived from a seed phrase to control the account. Thereby, the process of securifying the account is to update the associated access rule of the Owner from its default setting to a new one which instead specifies a badge (otherwise known as an "owner badge") to control the account.

An account can be securified by calling the securify method on the account, this method returns a bucket that contains the account’s owner badge (which the Owner access rule is now updated to). This badge must then be stored somewhere, ideally in an access controller.

The securify method is only callable by the Securify role. When an account is first created, the Securify role is pre-configured to also be the Owner. However, after the account has been securified the Securify role is re-configured to DenyAll, meaning it can’t ever be changed again and the method can no longer be called.

Effectively, the securification process is the process of switching from signature mode (from key pairs) to badge mode, this is because the process changes the owner’s access rule from requiring a signature to requiring a badge instead. Switching the account authorization from signature mode to badge mode offers expanded authorization configuration for the owner as detailed in this article: How Multi-Factor Radix Smart Accounts Work and What They Can Do.

The securification process is an important process for the wallet. The wallet will have a dedicated flow for securifying accounts and creating an access controller to store the account’s owner badge into. The API Reference section contains an example of a manifest that securifies an account.

Blueprint API - Function Reference

Account Component Rust Docs

Create

This function will never be called by the wallet for any of the wallet flows. It is documented here for the sake of completeness only. The wallet only creates pre-allocated accounts and none of the current flows include the use of explicitly-allocated accounts.

Transaction Manifest

CREATE_ACCOUNT;

TAKE_ALL_FROM_WORKTOP
    Address("${account_owner_badge_address}")
    Bucket("owner_badge");

# Do something with the owner badge, ideally create an access controller and deposit
# it there.

Note that the transaction manifest above is not complete, more specifically, the account owner badge returned from the create function is not deposited anywhere in this manifest. Ideally, the account owner badge would be stored in an access controller.

Create Advanced

This function will never be called by the wallet for any of the wallet flows. It is documented here for the sake of completeness only. The wallet only creates pre-allocated accounts and none of the current flows include the use of global explicitly-allocated accounts.

Transaction Manifest

CREATE_ACCOUNT_ADVANCED
    Enum<OwnerRole::Updatable>(
        # Contrived example to show AccessRule configuration
        Enum<AccessRule::AllowAll>()
    );

Component API - Method Reference

Lock fee

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "lock_fee"
    Decimal("${amount_of_xrd_to_lock_for_fees}");

Lock contingent fee

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "lock_contingent_fee"
    Decimal("${amount_of_xrd_to_lock_for_fees}");

Deposit

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "deposit"
    Bucket("some_bucket");

Deposit batch

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "deposit_batch"
    Expression("ENTIRE_WORKTOP");

Withdraw

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "withdraw"
    Address("${resource_address}")
    Decimal("${amount}");

Withdraw non-fungibles

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "withdraw_non_fungibles"
    Address("${resource_address}")
    Array<NonFungibleLocalId>(NonFungibleLocalId("${some_non_fungible_local_id}"));

Lock fee and withdraw

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "lock_fee_and_withdraw"
    Decimal("${amount_of_xrd_to_lock_for_fees}")
    Address("${resource_address}")
    Decimal("${amount}");

Lock fee and withdraw non-fungibles

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "lock_fee_and_withdraw_non_fungibles"
    Decimal("${amount_of_xrd_to_lock_for_fees}")
    Address("${resource_address}")
    Array<NonFungibleLocalId>(NonFungibleLocalId("${some_non_fungible_local_id}"));

Create proof of amount

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "create_proof_of_amount"
    Address("${resource_address}")
    Decimal("${amount}");

Create proof of non-fungibles

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "create_proof_of_non_fungibles"
    Address("${resource_address}")
    Array<NonFungibleLocalId>(NonFungibleLocalId("${some_non_fungible_local_id}"));

Burn

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "burn"
    Address("${resource_address}")
    Decimal("${amount}");

Burn non-fungibles

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "burn_non_fungibles"
    Address("${resource_address}")
    Array<NonFungibleLocalId>(NonFungibleLocalId("${some_non_fungible_local_id}"));

Set default deposit rule

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "set_default_deposit_rule"
    Enum<DefaultDepositRule::Accept>();

A more complete manifest example of this can be found here.

Set resource preference

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "set_resource_preference"
    Address("${resource_address}")
    Enum<ResourcePreference::Allowed>();

A more complete manifest example of this can be found here.

Remove resource preference

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "remove_resource_preference"
    Address("${resource_address}");

Add authorized depositor

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "add_authorized_depositor"
    Enum<1u8>(Address("${resource_address}"));

A more complete manifest example of this can be found here.

Remove authorized depositor

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "remove_authorized_depositor"
    Enum<1u8>(Address("${resource_address}"));

A more complete manifest example of this can be found here.

Securify

Transaction Manifest

CALL_METHOD
    Account("${account_component_address}")
    "securify";

TAKE_ALL_FROM_WORKTOP
    Address("${account_owner_badge_address}")
    Bucket("owner_badge");

# Do something with the owner badge, ideally create an access controller and deposit
# it there.

Note that the transaction manifest above is not complete, more specifically, the account owner badge returned from the securify method is not deposited anywhere in this manifest. Ideally, the account owner badge would be stored in an access controller.

Try deposit or abort

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "try_deposit_or_abort"
    Bucket("some_bucket")
    None;

Try deposit or refund

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "try_deposit_or_refund"
    Bucket("some_bucket")
    None;

Try deposit batch or abort

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "try_deposit_batch_or_abort"
    Expression("ENTIRE_WORKTOP")
    None;

Try deposit batch or refund

Transaction Manifest

CALL_METHOD
    Address("${account_component_address}")
    "try_deposit_batch_or_refund"
    Expression("ENTIRE_WORKTOP")
    None;
